Lenkrollen
Hauptkatalog:
Gummibereifung - Gummi bereifte Apparate-Räder und -Rollen
Katalogseite: 37
Material: Gummi
Zweireihiges Kugellager im Gabelkopf
Kunststofffelge und Gummibereifung blaugrau - Serie 30
aus Kunststoff - Serie 31
Kunststofffelge und thermoplastisches Spezial-Elastic-Gummi - Serie 32

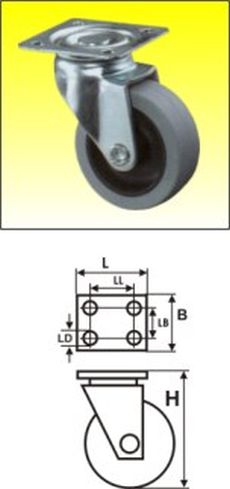

![]() | ![]() | B x L | LB x LL | LD | H | ![]() | Artikel-Nr. | Extras | |
---|---|---|---|---|---|---|---|---|---|
50 | 19 | 60x60 | 40x40 | 6,2 | 74 | 40 | 341-30-GL/050 | ![]() | ![]() |
50 | 19 | 60x60 | 40x40 | 6,2 | 74 | 40 | 341-30-KO/050 | ![]() | ![]() |
75 | 20 | 60x60 | 40x40 | 6,2 | 102 | 40 | 341-30-GL/075 | ![]() | ![]() |
75 | 20 | 60x60 | 40x40 | 6,2 | 102 | 50 | 341-30-KO/075 | ![]() | ![]() |
50 | 19 | 60x60 | 40x40 | 6,2 | 74 | 40 | 341-31-GL/050 | ![]() | |
75 | 24 | 60x60 | 40x40 | 6,2 | 102 | 40 | 341-31-GL/075 | ![]() | |
100 | 30 | 95x70 | 75x45 | 8,2 | 132 | 70 | 341-32-GL/100 | ![]() | ![]() |
125 | 30 | 95x70 | 75x45 | 8,2 | 155 | 100 | 341-31-GL/125 | ![]() |
