Lenkgehäuse schwer, bis 1.100 kg, mit Platte
Hauptkatalog:
Teile - Gehäuse
Katalogseite: 78

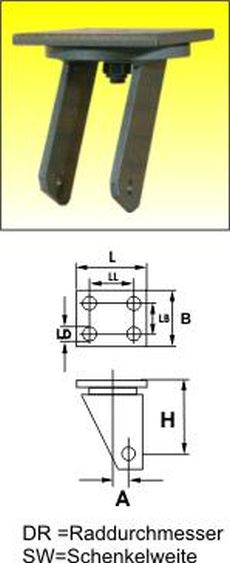

Platte 6,5 mm dick, Lenkgabel aus Stahl geschweißt, gehärtete Axial und Kugelrollenlager, Lagerung abgedichtet und über selbstsichernde Mutter nachstellbar.
Schenkelweiten variabel.
B x L | LB x LL | DR | A | Artikel-Nr. | Extras | ||||
---|---|---|---|---|---|---|---|---|---|
105x140 | 75/80x105 | 10,5 | 100 | 100 | 42 | 1100 | 521/100 | ||
110x160 | 75x125 | 10,5 | 100 | 100 | 42 | 1100 | 521/100/1 | ||
105x140 | 75/80x105 | 10,5 | 112,5 | 125 | 50 | 1100 | 521/125 | ||
110x160 | 75x125 | 10,5 | 112,5 | 125 | 50 | 1100 | 521/125/6 | ||
105x140 | 75/80x105 | 10,5 | 113 | 160 | 62 | 1100 | 521/160 | ||
110x160 | 75x125 | 10,5 | 130 | 160 | 62 | 1100 | 521/160/1 | ||
105x140 | 75/80x105 | 10,5 | 145 | 200 | 72 | 1100 | 521/200 | ||
110x160 | 75x125 | 10,5 | 145 | 200 | 72 | 1100 | 521/200/1 | ||
105x140 | 75/80x105 | 10,5 | 175 | 250 | 72 | 1100 | 521/250 | ||
110x160 | 75x125 | 10,5 | 175 | 250 | 72 | 1100 | 521/250/1 |
