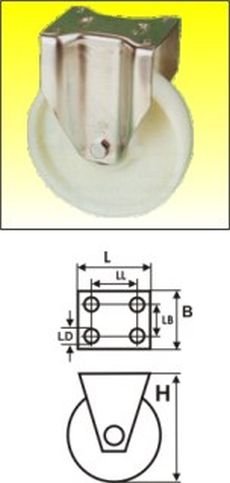

Bockrollen - verzinkte Stahlgehäuse
Hauptkatalog:
Kunststoff - Polyamid - Serie 1
Katalogseite: 5
Material: Polyamid
Gehäuse: verzinkte Stahlgehäuse
Rad naturfarben
 |  | B x L | LB x LL | LD | H |  | Artikel-Nr. | Extras | |
|---|---|---|---|---|---|---|---|---|---|
| 65 | 30 | 85x105 | 60x80 | 9 | 98,5 | 100 | 439-20-GL/065 |  |  |
| 65 | 30 | 85x105 | 60x80 | 9 | 98,5 | 100 | 439-20-RO/065 | |  |
| 80 | 35 | 85x105 | 60x80 | 9 | 106 | 120 | 439-20-GL/080 | | |
| 80 | 35 | 85x105 | 60x80 | 9 | 106 | 120 | 439-20-RO/080 | | |
| 100 | 38 | 85x105 | 60x80 | 9 | 128 | 150 | 439-20-GL/100 | | |
| 100 | 38 | 85x105 | 60x80 | 9 | 128 | 150 | 439-20-RO/100 | | |
| 100 | 38 | 110x140 | 75x105 | 11 | 125 | 250 | 439-20-GL/100/4 | | |
| 100 | 38 | 110x140 | 75x105 | 11 | 125 | 250 | 439-20-RO/100/4 | | |
| 125 | 40 | 85x105 | 60x80 | 9 | 153 | 200 | 439-20-GL/125 | | |
| 125 | 40 | 85x105 | 60x80 | 9 | 153 | 200 | 439-20-RO/125 | | |
| 150 | 48 | 110x140 | 75x105 | 11 | 190 | 250 | 439-20-GL/150 | | |
| 150 | 48 | 110x140 | 75x105 | 11 | 190 | 250 | 439-20-RO/150 | | |
| 150 | 48 | 110x140 | 75x105 | 11 | 190 | 250 | 439-20-KU/150 | ||
| 160 | 40 | 110x140 | 75x105 | 11 | 195 | 200 | 439-20-RO/160 | | |
| 200 | 50 | 110x140 | 75x105 | 11 | 235 | 350 | 439-20-GL/200 | | |
| 200 | 50 | 110x140 | 75x105 | 11 | 235 | 350 | 439-20-RO/200 | | |
| 200 | 50 | 110x140 | 75x105 | 11 | 235 | 350 | 439-20-KU/200 |
