Lenkgehäuse schwer, bis 1.540 kg, mit Platte
Hauptkatalog:
Teile - Gehäuse
Katalogseite: 82

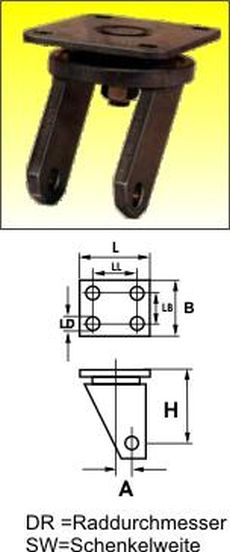

Lenkgabel aus Stahl geschweißt, groß dimensionierte Kugellaufbahn, über Kegelrollenlager nachstellbar, mit Schmiernippeln.
Schenkelweiten variabel.
B x L | LB x LL | LD | H | DR | A | Artikel-Nr. | |
---|---|---|---|---|---|---|---|
175x200 | 146x170 | 13 | 124 | 125 | 45 | 1100 | 551/125 |
175x200 | 146x170 | 13 | 138 | 160 | 60 | 1100 | 551/160 |
175x200 | 146x170 | 13 | 156 | 180 | 80 | 1100 | 551/180 |
175x200 | 146x170 | 13 | 156 | 200 | 80 | 1100 | 551/200 |
200x250 | 160x200 | 13 | 178 | 230 | 85 | 1540 | 551/230 |
200x250 | 160x200 | 13 | 178 | 250 | 85 | 1540 | 551/250 |
200x250 | 160x200 | 13 | 200 | 280 | 98 | 1540 | 551/280 |
200x250 | 160x200 | 13 | 200 | 300 | 98 | 1540 | 551/300 |
